Validate API endpoints

Use this check to confirm that your environment can reach the Data Sync API before you sync data. In production, the Data Sync service calls these endpoints. System administrators still need to validate connectivity and credentials during setup. Complete Deploy Data Sync service API (cloud) before starting this page. After you finish validating, proceed to Deploy NND Sync or Deploy Data Availability (on-premises).

This page is part of the optional NND Service (Data Sync) section. CDC is evaluating long-term support for this service. If your STLT has a use case, contact nbs@cdc.gov.

On this page

  1. Prerequisites
  2. Validate token generation in Postman
  3. Validate service endpoints in Swagger
  4. Next steps

Prerequisites

Complete the Deploy Data Sync service API deployment before you begin. This procedure uses Postman to send API requests. Download and install Postman from the Postman installation page.

You need a Keycloak client ID and client secret for the Data Sync service, nnd-keycloak-client. Retrieve these from your Keycloak instance. See Import service clients and retrieve secrets on the Deploy and configure Keycloak page.

Validate token generation in Postman

The token endpoint returns a JWT token that clients use to access secured Data Sync endpoints. Send a POST request to the following endpoint:

https://data.<your-site>.<your-domain>.com/data-sync/api/auth/token

Use NONE as the authorization type.

  1. Open Postman and send a POST request to the token endpoint.
  2. Add two request headers using the credentials from your Keycloak instance:
    • clientid
    • clientsecret

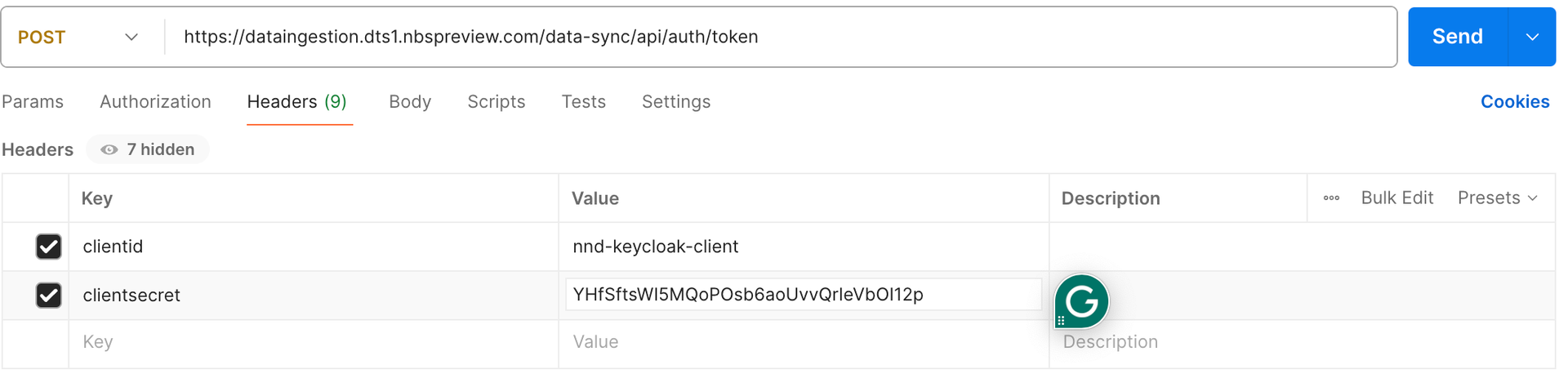

    The following screenshot shows the request configured in Postman:

    Postman request configured for token generation endpoint with clientid and clientsecret headers

  3. Select Send.

  4. Confirm that the response status is 200 OK and that a JWT token returns.

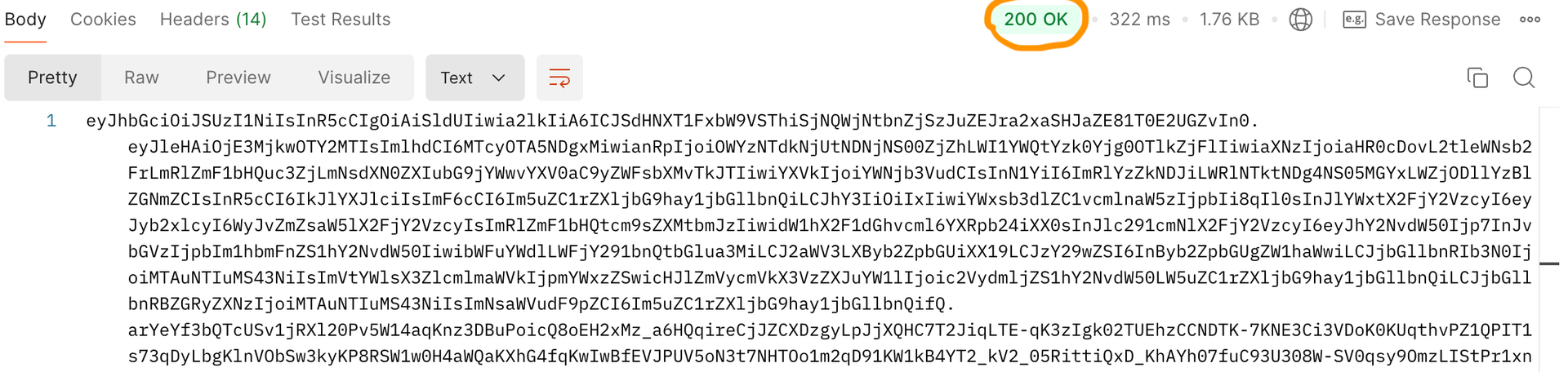

    The following screenshot shows an example successful response:

    Postman response showing HTTP 200 OK and returned JWT token

Validate service endpoints in Swagger

After token generation succeeds, validate the service endpoints in Swagger:

https://<host>/data-sync/swagger-ui/index.html

Next steps

Continue to Deploy NND Sync.
