Deploy core Kubernetes services

This page covers how to deploy the core services that must be running in your Kubernetes cluster before you deploy the NBS 7 microservices: the Traefik ingress controller, cert-manager, and the Cluster Autoscaler. Complete the sections on this page in order, then continue to Deploy and configure Keycloak, which is also a core service.

The kubectl commands on this page require the cluster connection you configured in Connect to Kubernetes cluster.

On this page

  1. Get the NEDSS-Helm charts
  2. Deploy Traefik ingress controller
  3. Configure cert-manager (optional)
  4. Next steps

Get the NEDSS-Helm charts

Complete these steps to download the Helm charts that deploy the core services and the NBS 7 microservices:

  1. Navigate to the NEDSS-Helm v7.13.0 release page. Under Assets, download the nbs-helm-v7.13.0.zip file.
  2. Unzip the downloaded file.

  3. In a terminal, change into the charts directory from the unzipped file:

    cd <HELM_DIR>/nbs-helm-v7.13.0/charts

Run all helm commands on this page from this charts directory.

Deploy Traefik ingress controller

The Traefik Helm chart in the NEDSS-Helm repository sets up Prometheus metrics, configures Linkerd sidecar injection for the traefik Kubernetes deployment, sets timeouts, and instructs the Traefik controller to create a Network Load Balancer (NLB) in AWS or an internal load balancer in Azure. This section covers how to deploy the Traefik controller, deploy the NBS ingress resources, and create the DNS records that route traffic to them.

Deploy the Traefik controller

  1. In the traefik chart directory, open the values file for your cloud provider:
    • AWS: traefik/values.yaml
    • Azure: traefik/values-azure.yaml

  2. Confirm that the deployment section of that file contains the following pod annotation:

    podAnnotations:
  linkerd.io/inject: enabled

  3. Optional: To make the kubectl logs command return more information if you encounter issues, change INFO to DEBUG in the following snippet in that file:

    logs:
  general:
    level: INFO

  4. Add the Traefik Helm chart repository and update it:

    helm repo add traefik https://traefik.github.io/charts
helm repo update
  5. Deploy the Traefik controller to your Kubernetes cluster with the command for your cloud provider:

    • AWS:

      helm install traefik traefik/traefik --namespace traefik --create-namespace -f ./traefik/values.yaml

    • Azure:

      helm install traefik traefik/traefik --namespace traefik --create-namespace -f ./traefik/values-azure.yaml

    If your AKS cluster has Windows node pools, for example for NBS 6, append the following option to the Azure command so that Traefik is scheduled on a Linux node: --set nodeSelector."kubernetes\.io/os"=linux

  6. Wait for the deployment to complete: Run the following command and verify that it prints that the deployment was successfully rolled out:

    $ kubectl rollout status deployment/traefik -n traefik
deployment "traefik" successfully rolled out

  7. Confirm the Traefik pod is healthy: Run the following command and verify that the pod has a STATUS of Running and that the two numbers in the READY column match:

    $ kubectl get pods -n traefik
NAME                                          READY   STATUS    RESTARTS   AGE
traefik-<POD-TEMPLATE-HASH>-<RANDOM-STRING>   2/2     Running   0          5m

  8. Get the Traefik load balancer address: Run the following command and confirm that ports 80 and 443 are listed under the PORT(S) column. The example output is from AWS:

    $ kubectl get svc -n traefik
NAME      TYPE           CLUSTER-IP       EXTERNAL-IP                                          PORT(S)                                  AGE
traefik   LoadBalancer   172.xx.xxx.xxx   [HASH]-[RANDOM-ID].elb.[YOUR-REGION].amazonaws.com   80:[NODEPORT1]/TCP,443:[NODEPORT1]/TCP   6m

Each instance of [HASH]-[RANDOM-ID].elb.[YOUR-REGION].amazonaws.com on this page refers to the same value: the address of your Traefik load balancer. For AWS, this is an NLB hostname. For Azure, this is an IP address.

Deploy NBS ingress resources

The nbs-ingress Helm chart manages all ingress routing between the NBS 7 applications deployed to your Kubernetes cluster. Complete these steps to deploy it:

  1. In the nbs-ingress/values.yaml file (the same file is used for AWS and Azure), search for EXAMPLE and fill in your environment-specific values. The Helm values reference for NBS 7 microservices lists the values to use.

  2. Deploy the ingress resources to your Kubernetes cluster:

    helm install nbs-ingress ./nbs-ingress -n default -f ./nbs-ingress/values.yaml

  3. Verify that the ingress resources were created. If you use PowerShell, replace grep -E with Select-String. The example output is from AWS:

    $ kubectl get ingress -A | grep -E "NAME|traefik"
NAMESPACE   NAME                        CLASS     HOSTS                  ADDRESS                                              PORTS     AGE
default     nbs-ingress-dataingestion   traefik   <YOUR-DATA-HOSTNAME>   [HASH]-[RANDOM-ID].elb.[YOUR-REGION].amazonaws.com   80, 443   5m
default     nbs-ingress-main            traefik   <YOUR-APP-HOSTNAME>    [HASH]-[RANDOM-ID].elb.[YOUR-REGION].amazonaws.com   80, 443   5m

Create DNS records

Create A records in your Domain Name System (DNS) service, such as Amazon Route 53 or Azure DNS, that point to the address of the Traefik load balancer:

  1. Retrieve the load balancer address: The kubectl get svc -n traefik command in Deploy the Traefik controller printed the address of the Traefik load balancer under the EXTERNAL-IP column. Rerun that command if you need to retrieve the address again.

  2. Create the records: Create an A record for each hostname in the following table. Replace <DOMAIN_NAME.TLD> with your site and domain names from the Helm values reference for NBS 7 microservices:

    Subdomain description Hostname Example
    NBS application app.<DOMAIN_NAME.TLD> app.nbsdemo.com
    Data services data.<DOMAIN_NAME.TLD> data.nbsdemo.com
    NiFi (use with caution) nifi.<DOMAIN_NAME.TLD> nifi.nbsdemo.com

    NiFi has known security vulnerabilities. Add a NiFi DNS record only if you need to administer NiFi directly. Otherwise, omit it.

    To create the records in your cloud provider:

    • AWS: In the AWS Management Console, navigate to Route 53 > Hosted Zones and select your hosted zone. Make note of your Hosted zone ID, because the verification step uses it. Create or edit each A record from the table so that its Route traffic to target is the hostname of your Traefik load balancer.
    • Azure: In the Azure Portal, navigate to DNS Zones and select your DNS zone. Create or edit each A record from the table so that it points to the IP address of your Application Gateway.

  3. Verify the records: For each record you created, run the following nslookup command and verify that it does not print an error such as server can't find. Records typically propagate within 60 seconds. If you encounter an error, rerun the command periodically for up to 5 minutes until it prints no error:

    nslookup app.<DOMAIN_NAME.TLD>

    For Azure, verify that the command prints the IP address of your Traefik load balancer.

    For AWS, the nslookup command prints other IP addresses, so run the following command instead to verify the record target. Fill in your values in the strings surrounded by angle brackets, and verify that the output is the hostname of your Traefik load balancer:

    $ aws route53 list-resource-record-sets \
  --hosted-zone-id <YOUR_AWS_ROUTE53_HOSTED_ZONE_ID> \
  --query "ResourceRecordSets[?Name=='app.<DOMAIN_NAME.TLD>.'].AliasTarget.DNSName" \
  --output text
[HASH]-[RANDOM-ID].elb.[YOUR-REGION].amazonaws.com

Troubleshoot Traefik

If you encounter issues when you deploy or verify Traefik, the following sections provide suggestions.

Access the Traefik dashboard

The Traefik dashboard lets you inspect routers, services, and middleware:

  1. Run the following command, which creates a secure, temporary network tunnel between your local machine and the traefik pod in your Kubernetes cluster. Leave the command running:

    $ kubectl port-forward -n traefik deployment/traefik 9000:9000
Forwarding from 127.0.0.1:9000 -> 9000
Forwarding from [::1]:9000 -> 9000

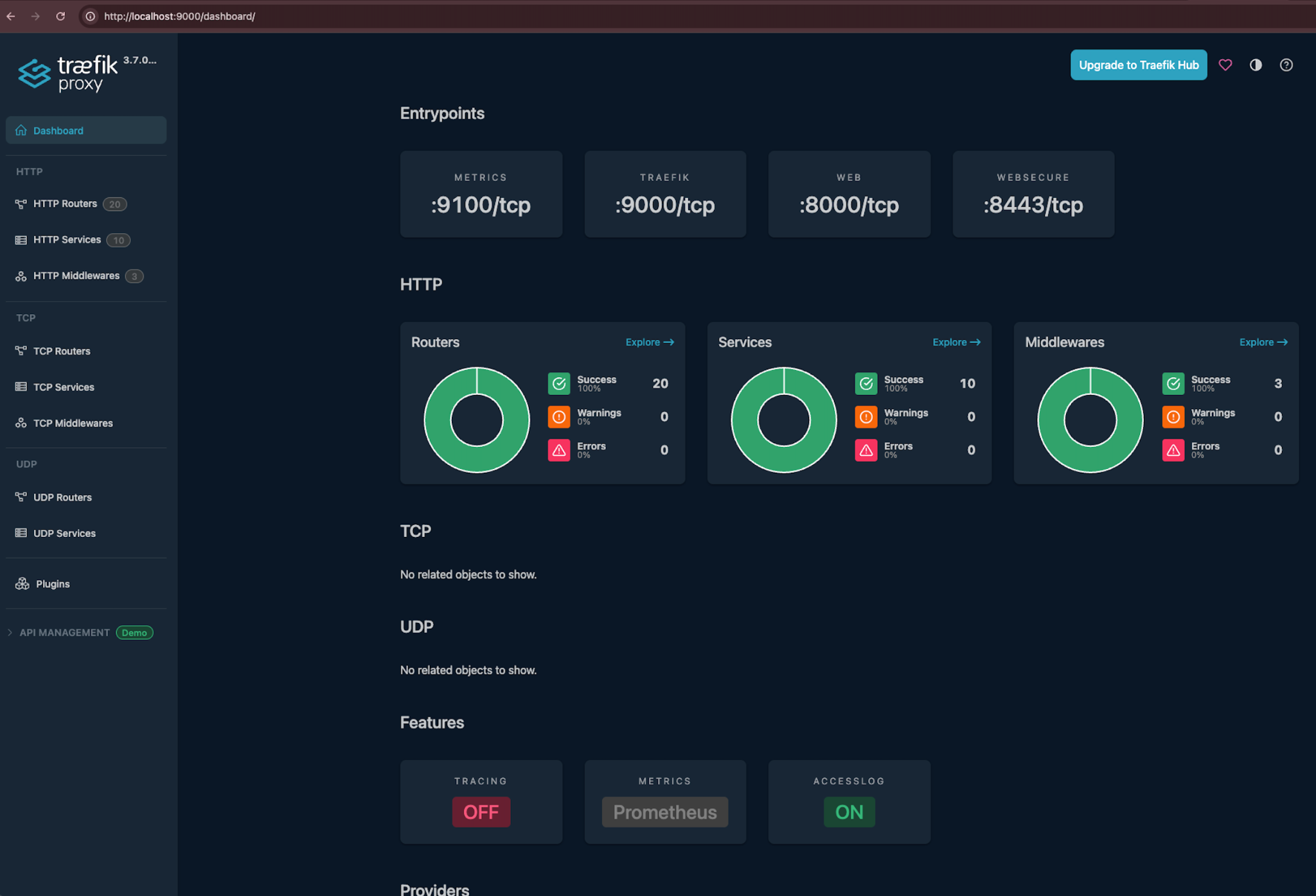

  2. Navigate to http://localhost:9000/dashboard/ in your browser to access the Traefik dashboard. The following screenshot shows the dashboard:

    Traefik dashboard with entrypoints panels for ports 80, 443, and 9000, and status panels showing all HTTP routers, services, and middleware in a success state

  3. When you finish using the dashboard, press Ctrl+C in the terminal that is running the port-forward command to stop the tunnel.

View Traefik logs

To print the most recent Traefik log entries, run the following command:

kubectl logs -n traefik deployment/traefik -c traefik --tail=100

Common Traefik issue

  • 502 Bad Gateway: Run the following command and confirm that ports 8443 and 8000 are listed under the ENDPOINTS column:

    $ kubectl get endpoints -n traefik
NAME      ENDPOINTS                                     AGE
traefik   [POD-IP-ADDRESS]:8443,[POD-IP-ADDRESS]:8000   10m

Get support

If issues persist after you complete the troubleshooting steps, email nbs@cdc.gov.

Configure cert-manager (optional)

cert-manager is a core service that Terraform deploys when you provision your cloud environment. It creates Transport Layer Security (TLS) certificates for workloads in your cluster and renews the certificates before they expire. By default, cert-manager uses Let’s Encrypt as the certificate authority for the NiFi and modernization-api services.

If you have manual certificates, skip steps 1 - 4 and store your certificates in Kubernetes secrets instead. For more information, see the Kubernetes Secrets documentation.

  1. Locate the cluster issuer manifest at k8-manifests/cluster-issuer-prod.yaml in the NEDSS-Helm repository.

  2. In cluster-issuer-prod.yaml, update the email address to a valid operations address. Let’s Encrypt uses this address to notify you of upcoming certificate expirations if automatic renewal stops working.

  3. Apply the manifest:

    cd <HELM_DIR>/k8-manifests
kubectl apply -f cluster-issuer-prod.yaml

  4. Verify that the cluster issuer is deployed and in a ready state. You should see letsencrypt-production with a READY status of True:

    kubectl get clusterissuer

    Terminal output of the kubectl get clusterissuer command showing letsencrypt-production with a READY status of True

Next steps

Continue to Deploy and configure Keycloak.
