Deploy Data Sync service API

This page walks through deploying the NBS 7 Data Sync service API using the nnd-service Helm chart from the NEDSS-Helm repository for NBS version 7.13. After you finish this page, proceed to Validate API endpoints.

This page is part of the optional NND Service (Data Sync) section. CDC is evaluating long-term support for this service. If your STLT has a use case, contact nbs@cdc.gov.

On this page

  1. Prerequisites
  2. Configure values and install
  3. Validate the deployment
  4. Next steps

Prerequisites

This page assumes you’ve completed Before you begin for the microservices phase and each microservice deployment page before this one, in order. The page immediately before this one is the Data Processing deployment.

Configure values and install

Complete the following steps to deploy the ‘nnd-service’ Helm chart from the charts/nnd-service/ directory of your cloned NEDSS-Helm repository:

  1. Confirm that the following DNS entry was created and points to the Network Load Balancer (NLB) in front of your Kubernetes cluster. Use the active NLB provisioned during base install. Do this in your authoritative DNS service, such as Route 53. Replace example.com with the appropriate domain name in values.yaml:
    • NND service application, for example: data.example.com

  2. Search values.yaml for EXAMPLE and fill in the JDBC connection values and EFS file system ID. The dbserver value is the database server endpoint only; do not include the port number. The Helm values reference lists the values to use.

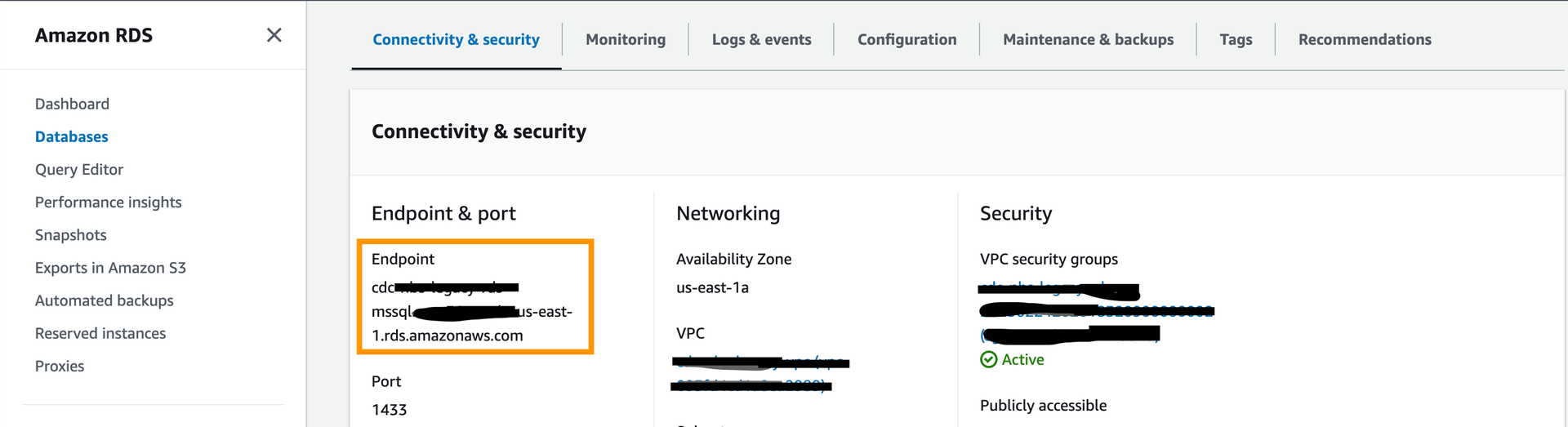

    The following screenshot shows the database endpoint in the Amazon RDS console:

    Amazon RDS console showing the Connectivity and security tab with the database endpoint highlighted in the Endpoint and port section

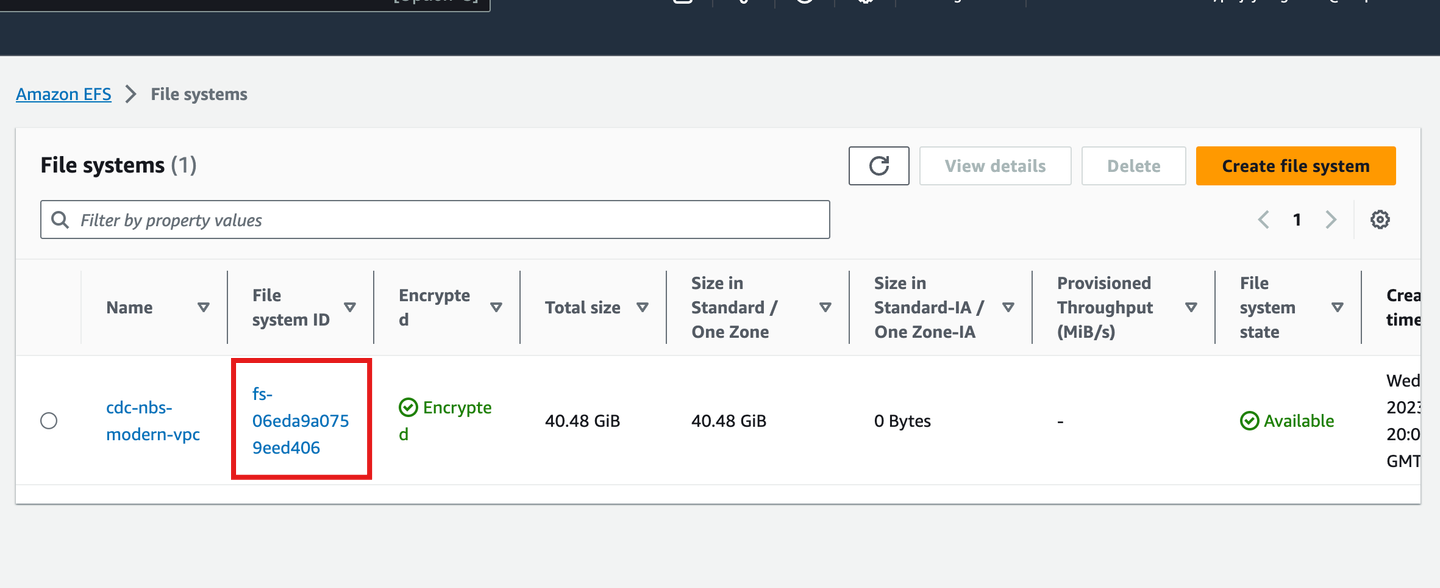

    The following screenshot shows the file system ID in the Amazon EFS console:

    Amazon EFS console showing the File systems list with the file system ID highlighted in the File system ID column

  3. Install the nnd-service chart:

    helm install "nnd-service" ./nnd-service -f ./nnd-service/values.yaml

  4. Confirm the pod is running before continuing:

    kubectl get pods

Validate the deployment

Use the actuator endpoints to confirm the service is running.

Run the info endpoint to confirm the service version and build details:

https://<data.EXAMPLE_DOMAIN>/extraction/actuator/info

Run the health endpoint to confirm the service is running:

https://<data.EXAMPLE_DOMAIN>/extraction/actuator/health

To enable Swagger for testing, specify or overwrite springBootProfile with 'dev' in charts/nnd-service/values.yaml. Swagger is disabled by default in production.

https://<data.EXAMPLE_DOMAIN>/extraction/swagger-ui/index.html#/

Next steps

Continue to Validate API endpoints.
