NBS 7 architecture and microservices

Overview

The deployment of the modernized NBS 7 complements and builds upon the existing NBS 6 system, integrating through the strangler fig pattern. Users experience a smooth transition between the modern NBS 7 features and legacy NBS 6.

To prevent disruptions to the existing NBS 6 deployment, NBS 7 runs on a dedicated cloud network. A dedicated connection links the NBS 7 and NBS 6 network environments so that the systems can communicate.

Architecture

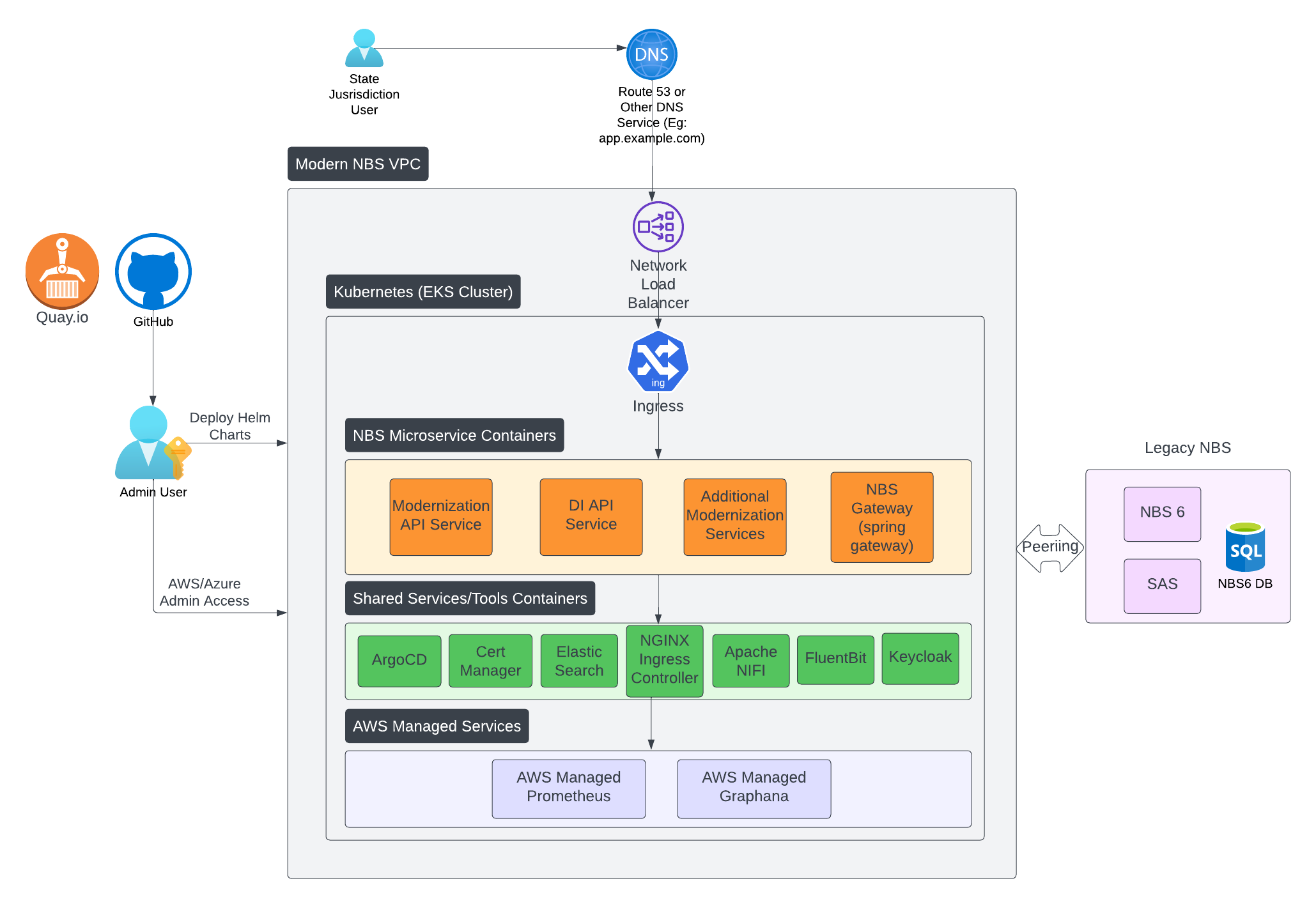

This diagram illustrates the key components of NBS 7.

Infrastructure

Infrastructure as Code (IaC)

NBS 7 uses an infrastructure as code approach. Terraform provisions the cloud network, Kubernetes cluster, and supporting infrastructure. Helm automates the deployment of supporting services such as Fluent Bit and cert-manager. All code is available in GitHub.

NBS Microservices

NBS 7 introduces microservices for the modernized system, deployed using Helm charts:

Modernization API Service: This service incorporates essential NBS 7 features such as patient search, event search, patient profile, investigations, etc.
NBS-gateway Service: Leveraging Spring Cloud Gateway, this service efficiently manages intricate strangler routing logic between NBS 7 and NBS 6.
Data Ingestion API Service: Our dedicated service provides essential APIs that enable NBS to seamlessly ingest HL7 data from labs and other entities into the NBS system.

Traefik Kubernetes Ingress provider

Serving as the entry point into the Kubernetes cluster, the Traefik Kubernetes Ingress provider intelligently routes users based on predefined routing rules. Users are directed to the NBS 7 features (Modernization API Service) or classic NBS 6 features (NBS-gateway Service). The deployment of Traefik is orchestrated using Helm charts and values files.

Shared services, tools, and containers

The following tools run alongside NBS 7 microservices to provide supporting infrastructure for certificate management, search, data flow, and logging.

Cert Manager: This tool automates TLS certificate management and is integrated into the infrastructure through Terraform. The certificate issuer connects to the Let’s Encrypt Certificate Authority by default and is installed using YAML manifests and kubectl commands.
Apache NiFi: As an ETL tool, Apache NiFi populates Elasticsearch indices from the NBS database. Deployment of NiFi uses Helm charts and values files.
Elasticsearch: NBS relies on Elasticsearch for lightning-fast searches. The deployment of Elasticsearch uses Helm charts and values files.
Fluent Bit: Fluent Bit serves as the log aggregator, collecting logs from various microservices and Kubernetes components and, by default, pushing them to designated cloud storage and monitoring services.

Data Ingestion service

The Data Ingestion service provides necessary foundational pieces to track and route electronic lab report (ELR) data flowing into NBS, and lays the groundwork to provide additional ingestion options.

Accepts a variety of electronic lab reports using different versions and fields
Saves all incoming messages for auditing, debugging, and disaster recovery and you can configure how long messages are saved
Verifies all input data (HL7) against standard rules and provides an error when rejected
Supports both positive and negative lab results with the appropriate code
Provides both syntactic and semantic validations
Removes unwanted data such as extraneous logs using filters
Provides duplication checks to see if the data has made it through the system before
Includes error handling and logging for both business data and operation data for situational awareness
Supports traffic and system health monitoring

Real-Time Reporting (RTR) microservices

Real-Time Reporting (RTR) provides rapid transformation and delivery of data from the transactional database (NBS_ODSE) to the reporting database (RDB). For detailed RTR deployment instructions, see Deploy real-time reporting.

The following services comprise RTR:

Liquibase job: Database version control management that deploys stored procedures, tables and views required for RTR pipeline
Person service: Processes Patient and Provider change events
Observation services: Processes Observation change events
Organization service: Processes Organization change events
LDF service: Processes LDF or State-defined field data change events
Investigation service: Processes Public_health_case change events and provides information for page builder investigation, notifications, confirmation method, and updates the PublicHealthCaseFact_Modern datamart
Post-processing service: Calls the post-processing stored procedures to hydrate dimensions, fact tables, and datamarts
Debezium service: Monitors and streams the selected list of NBS_ODSE and NBS_SRTE tables to Kafka topics
Kafka sink service: Persists the data from the Kafka topics to the RDB_Modern database tables

Data processing service

The NBS 7 data processing service provides a way to process electronic lab reports (ELRs) in near real-time instead of depending on the system-bounded ELR batch job.

Keycloak

Keycloak is an open-source identity and access management tool. NBS 7 uses Keycloak as the primary Identity Provider (IdP) for authentication, token management, and SSO integration with external identity providers such as Okta using OAuth or SAML.
